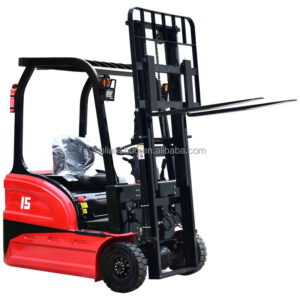

Name: All Terrain Forklift Warehousing Logistics Manufacturing Cast Iron Integrated Multi-function CE Three Wheeled Electric Forklift
Price: 1600.00 USD
Availability: InStock

Description du produit

item	unit	Numerical value
Rated lifting weight	Kg	2000
Length	No fork	mm	1850
Pallet fork	mm	2930
breadth	Frame width	mm	1120
Altitude	Unable to raise the height of the gantry	mm	2180
Top guard height	mm	2100
Maximum height during operation	mm	3880
wheelbase	mm	1400
Front overhang	mm	360
Front track	mm	900
Rear track	mm	70
Minimum ground clearance	Lower end of door frame (empty/full)	mm	80
Middle frame (empty/full)	mm	80
Maximum lifting height without load	mm	3000
Free lifting height	mm	3000
Gantry (fork) Angle (front/rear)	( ° )	15
The quality of the whole machine under standard no-load condition	Kg	2900
Maximum lifting speed without load	mm/s	100
Full load maximum lifting speed	mm/s	90
Minimum turning radius	mm	1700
Maximum operating speed without load	km/h	11
Full load maximum operating speed	km/h	8
Full load maximum gradient	%	15
Steering mode	/	Hydraulic power assist
Load center distance	mm	500
Front wheel specification	/	500-8
Rear wheel specification	/	350-100
Boost motor power	kw	5
Drive motor power	kw	5
Charger input voltage	v	220
Charging time	h	8
Battery capacity	ah	70
Rated voltage	v	60

Advantages of electric forklifts:

Cast iron counterweight; cast integrated drive axle;
Full AC motor, advanced motor drive system brings excellent driving ability;
Battery maintenance-free, lithium battery maintenance-free, lead-acid battery;
High-strength solid tires;
Optimized hydraulic system, effectively reducing the energy consumption of the whole vehicle;
Equipped with high and low speed climbing assist mode;
Fast lifting speed, strong climbing ability, high operating efficiency and other advantages.

Spécification

Click Get discount

Click to get catalog

Click for coupon

Click Get video

Emballage & Livraison

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Profil de l'entreprise

Electric forklifts are easy to operate and flexible, and their operators are much more relaxed than internal combustion forklifts. Their electric steering system, acceleration control system, and pressure control system greatly reduce the difficulty of operation. Compared with internal combustion forklifts, their advantages of low noise and no exhaust emissions have also been recognized by many users. The rapid development of electronic control technology has made electric vehicles easier and more comfortable to operate, and their scope is becoming wider and wider.

Hebei Liaoshuo Manufacturing Co., Ltée. is an enterprise focusing on electric forklifts, stackers, forklifts, and construction equipment. The company has strong technical and R&D capabilities.
Since its establishment, the company has always adhered to the business principles of talent-based and honest business, gathering industry elites, combining foreign advanced information technology, management methods and corporate experience with the specific reality of domestic enterprises, providing enterprises with a full range of solutions, helping enterprises to improve management levels and production capacity, so that enterprises can always maintain competitiveness in the fierce market competition and achieve rapid and stable development of enterprises.
We strive to provide users with the best service and the best return on investment. The best products, the best services, and the best reputation are our consistent purpose, and we are willing to become your most trusted long-term partner.

FAQ

1. How about the sample policy?

We can accept sample order to test the quality. But the sample and courier cost should be borne by customers.

2. How long will it take to execute my order?

Please tell us the quantity and model of the products you want to order,so that we can give you a detailed schedule.

3. How will I know my order is complete?

After receiving the deposit, we will arrange the delivery immediately. After the order is completed, we will also send you the inspection picture of your order before delivery for your confirmation.

4. Can you arrange the shipment for us?

Oui. When the order is completed, we will notify you, and we can also arrange delivery at the same time. There are DDP shipping and DAP shipping with different order deadlines, and the buyer can also choose air or sea shipping according to your requirements. The logistics company will notify you when your order arrives at your nearest sea or river port.

5. Can you guarantee your products?

Oui, we guarantee your 100% satisfaction with all of our products. If you are not satisfied with our quality or service, please feel free to reply to us. If the product does not meet the contract requirements, we will replace it for you free of charge or give compensation in the next order.

6. Can I visit your company?

certainly. We are always happy to serve you. We have a showroom in Hebei, China. If you want to order our products and visit our company, please contact us to make an appointment.

7. Do you provide custom designs?

Custom designs are certainly available. We have very rich experience in custom shelves.
